Merkel Tree: What is it, and how does it work?

A Merkle Tree is a data structure used to verify the integrity of large amounts of data efficiently.

June 22, 2023

Hero

A Merkle Tree is a binary tree of hash values, where each leaf node represents a single piece of data or a hash of a piece of data. It is used to verify the integrity of large amounts of data efficiently. It was invented by Ralph Merkle in 1979 and is widely used in cryptocurrencies like Bitcoin and Ethereum.

A hash function is like a fingerprint machine. It takes any input, such as a file, a text, or a number, and produces a unique output, called a hash, that is much shorter than the input. The hash is like a fingerprint of the input. It is tough to find two different inputs that have the same hash. And it is impossible to get the original input from the hash.

For example, if you have a file called "kishan.jpg" that is 1 MB in size, you can use a hash function to get a hash that is only 64 characters long, such as0A6DF48A27EF7DB48B213DF3DBA84FAD1BB4FD9B47568DA1F570C067D9A4867F. If you change even one pixel in the file, the hash will be completely different, such asC69E60E932F3D0C6C2363B68301E202551C09123A71F639E6AB3BC8F847BE4AF. So you can use the hash to verify that the file is the same as before.

But what if you have many files? Calculating and storing the hash for each file separately would be tedious. That's where Merkle trees come in handy.

A Merkle tree is like a family tree of hashes. You start with the hashes of each file as the leaves of the tree. Then you pair up the hashes and combine them to get new hashes. You repeat this process until you reach the top of the tree, where you have only one hash left. This hash is called the Merkle root.

The Merkle root is like a fingerprint of all the files in the tree. If any file changes, its hash will change, and so will all the hashes above it until the Merkle root changes. So you can use the Merkle root to verify that all the files are the same as before.

But how do you verify a specific file? You don't need to download and check all the files in the tree. You only need to download and check a few hashes along the path from the file to the Merkle root. This path is called a Merkle proof.

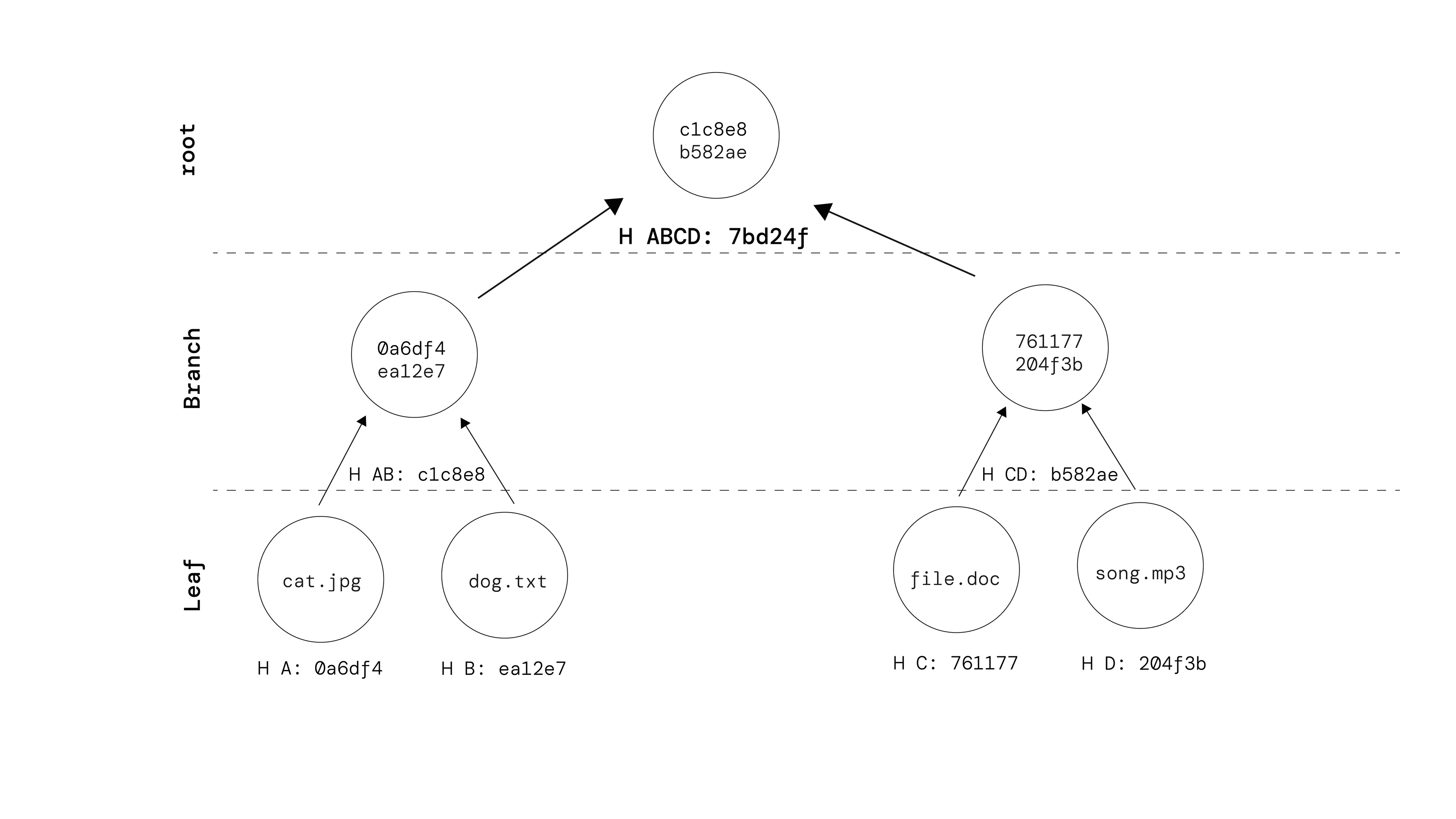

Merkle Tree with Example

Merkle Tree with Example

For example, suppose you want to verify whether the file "cat.jpg" is correct. You only need to download its hash H A which is 0a6df4, its sibling's hash H B (ea12e7), their parent's sibling's hash H CD (b582ae), and the Merkle root H ABCD (7bd24f).

Then you can calculate H AB by combining H A and H B and calculate H ABCD by combining H AB and H CD . If H ABCD matches the Merkle root, you can be sure that."cat.jpg" is correct.

You can use the same analogy to verify if the transaction present in the block is tempered by verifying the Merkle root instead of cat.jpg or dog.txt. It'll be a bunch of transactions at the leaf nodes.

Please note: I have truncated the hash value to 6 characters in the above example to make the diagram look clean.

What if I only have three leaf nodes? How will I create a Merkle Tree?

This scenario can quickly be addressed by duplicating one node, thus making the total number of nodes four.

For example, suppose you have transactions. T A, T B, and T C. You can calculate their hashes. H A, H B, and H C. Then you can duplicate H C to get H C'. Afterward; you can pair up and combine the hashes to get H AB, H CC’, and H ABCC’. The Merkle root is H ABCC’.

Summing up, Merkle trees benefit blockchain and other distributed systems, where many computers must share and verify large amounts of data. By using Merkle trees, they can save bandwidth, storage, and computation time.

Here's a quick Java example to show how you can create your own Merkle tree:

Merkle Example JAVA Code

Output of the above code:

Merkle Root: d1da3503d679f032134b4330768d31e67813fcfe2824fceed93f8185a405bdf9
Merkle Root: 1a898c7fee0e46647e55d5f9874f090e5ed76726acf39308527a0bba22a34b3e
.   .   .

Thank you for taking the time to read my article.

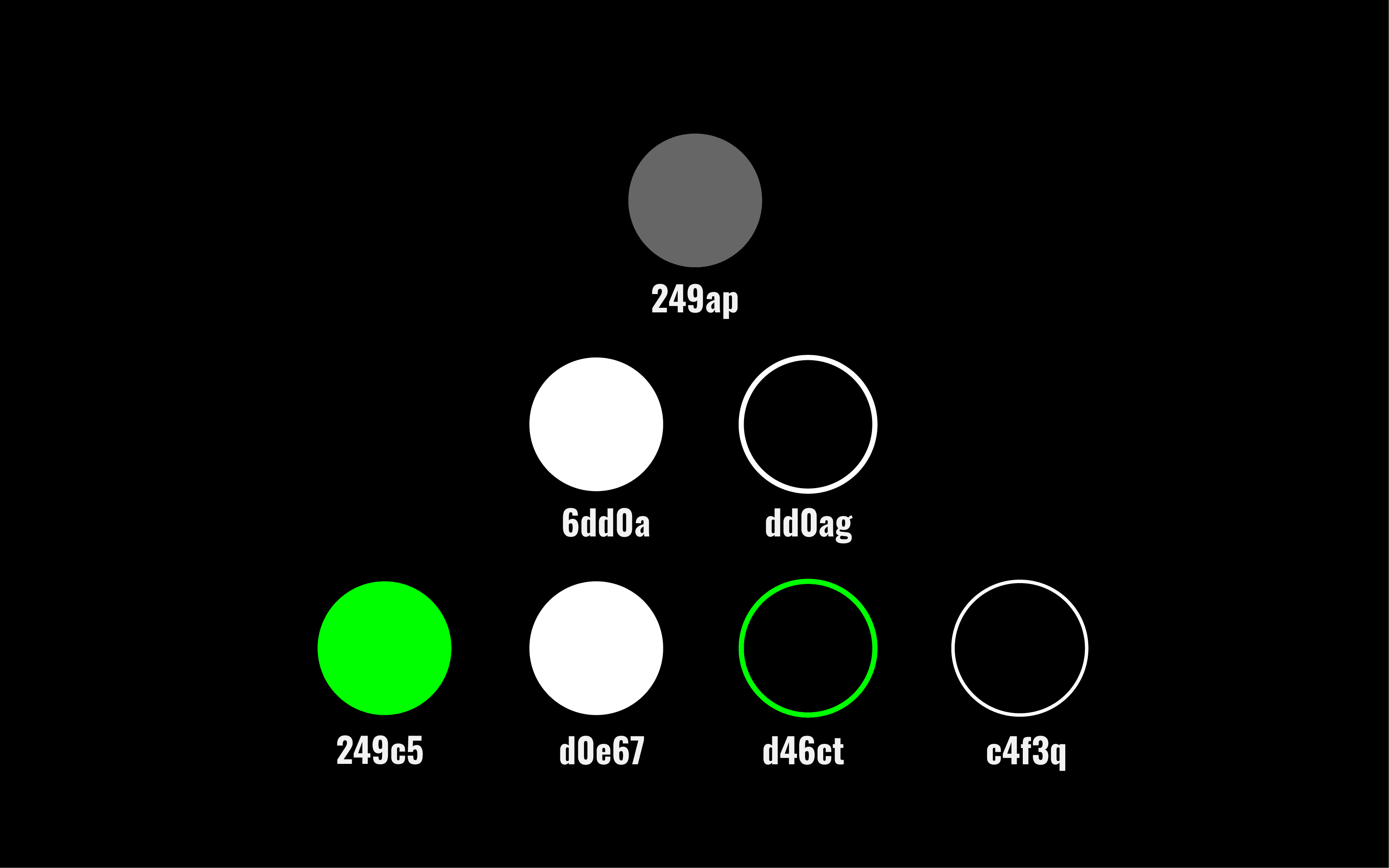

Part 2: Merkle Tree: A Blockchain Perspective

Merkle Tree: How Blockchain Ensures Data Integrity and Security

In a blockchain context, a Merkle tree is constructed for the transactions within a block. Let's take an example to illustrate this process. Consider a block containing four transactions:
